Urban Shuttle

This superbly fitted out dog van opens up a whole new world of possibilities whilst also performing as a really practical workhorse.

Veterinary urban shuttle

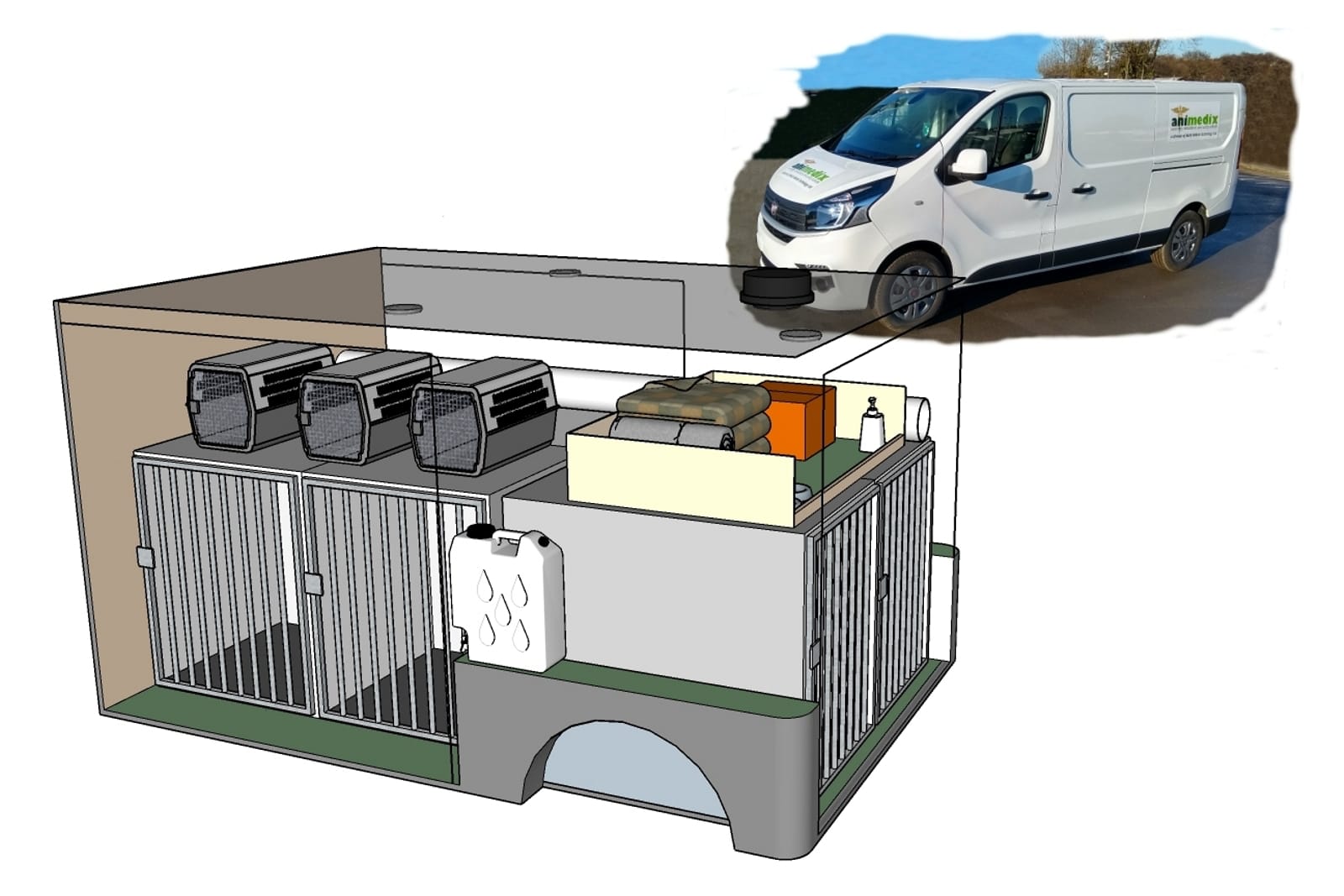

The Animedix Urban-Shuttle dog van was initially designed for inter branch transfer of both patients and staff in larger practices and for veterinary hospitals. In addition it has facilities to carry equipment and consumables to maximise its versatility and use.

Its design enables the transport of up to 6 large animals and between 3 to 6 smaller animals at any one time with seating for up to 3 staff.

Its design and carrying capacity is also proving ideal for welfare charities, rescue organisations plus offering Dog Wardens an ideal format for day to day animal collection and transport. For this use we have also included a storage tube for control poles.

We have based our design on the Fiat Talento L1H1 van but can build this conversion on any similar van make or model. The vehicle body features large twin side loading doors and rear access to maximise versatility of use and ease of access.

The transport area is ventilated via a roof mounted rotary ventilation fan, cum air scoop.

The Urban-Shuttle is finished with high visibility graphics showing your corporate identity, and the veterinary animal ambulance logo, making the vehicle instantly recognisable which provides subtle but maximum advertising all year round.

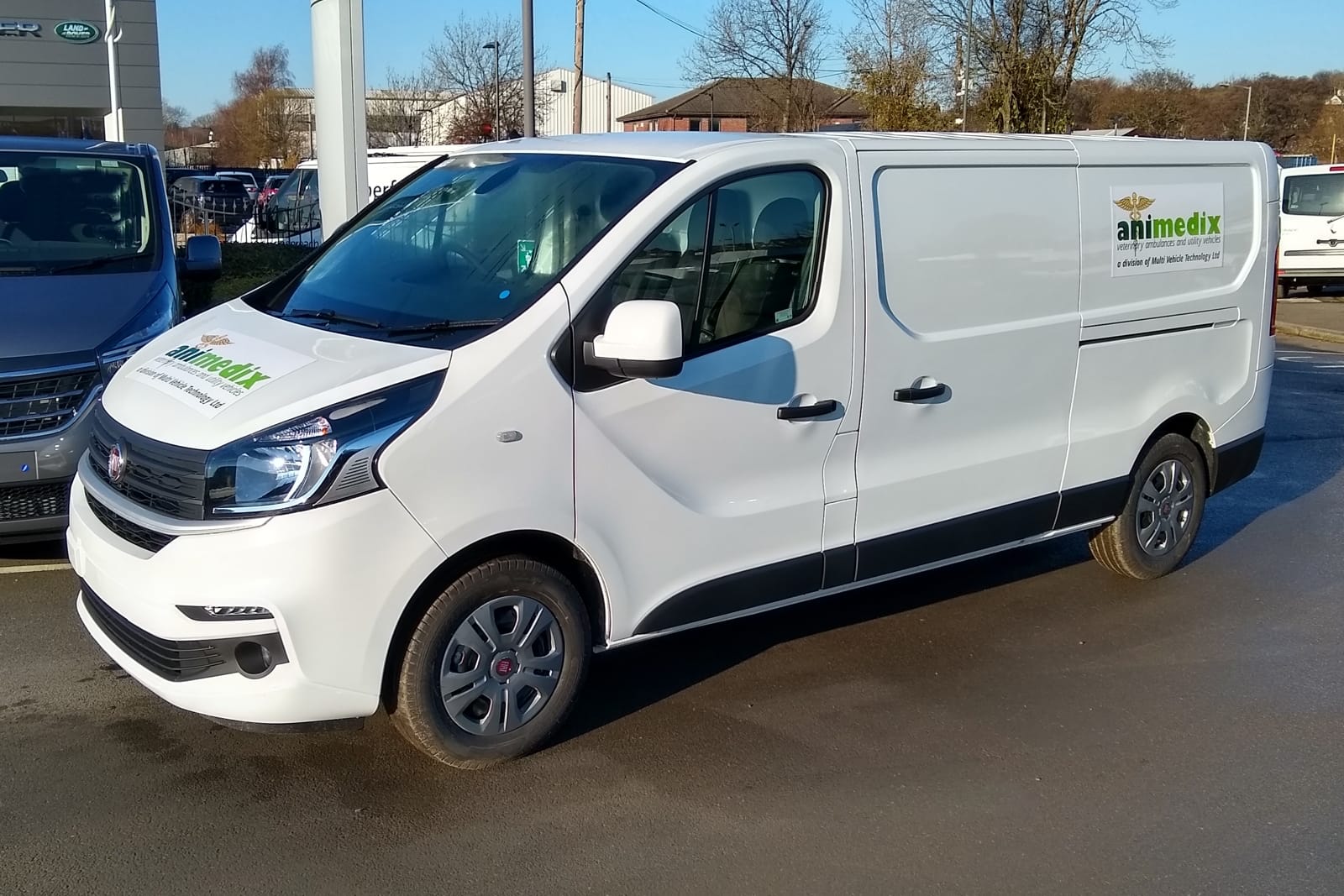

Urban Shuttle dog van

Standard vehicle specification:



ItemSpec
Gross vehicle weight835 kg
Max trailer weight2000 kg
Length4999 mm
Width(excl. mirrors)1956 mm
Height1971 mm
TransmissionFWD
Cubic capacity2000 cc
Fuel typeDiesel
Emission levelEuro 6d-temp
Gearbox6 speed
Combined+stop start49.5 mpg
CO2+stop start155 g/km
Number of seats3

Standard veterinary features:

  • Marine plywood flooring and wall dividers
  • Insulated wall and ceiling cavities
  • Vinyl floor covering
  • Impervious white wall lining
  • 6 Large animal cages
  • 3 off small animal carriers (positions for 6)
  • Equipment tray
  • Fresh and waste Water containers
  • Hand gel dispenser
  • Storage tube of control poles
  • Rotary roof vent
  • External graphics

Optional vehicle specification:

  • Dash cam
  • Sat nav
  • Phone holder

Optional features:

  • Animal access ramp (for rear cage)
  • Fire extinguisher
  • Magnetic work lamp for External lighting
  • Powered roof vent
  • Vehicle cabin organiser
